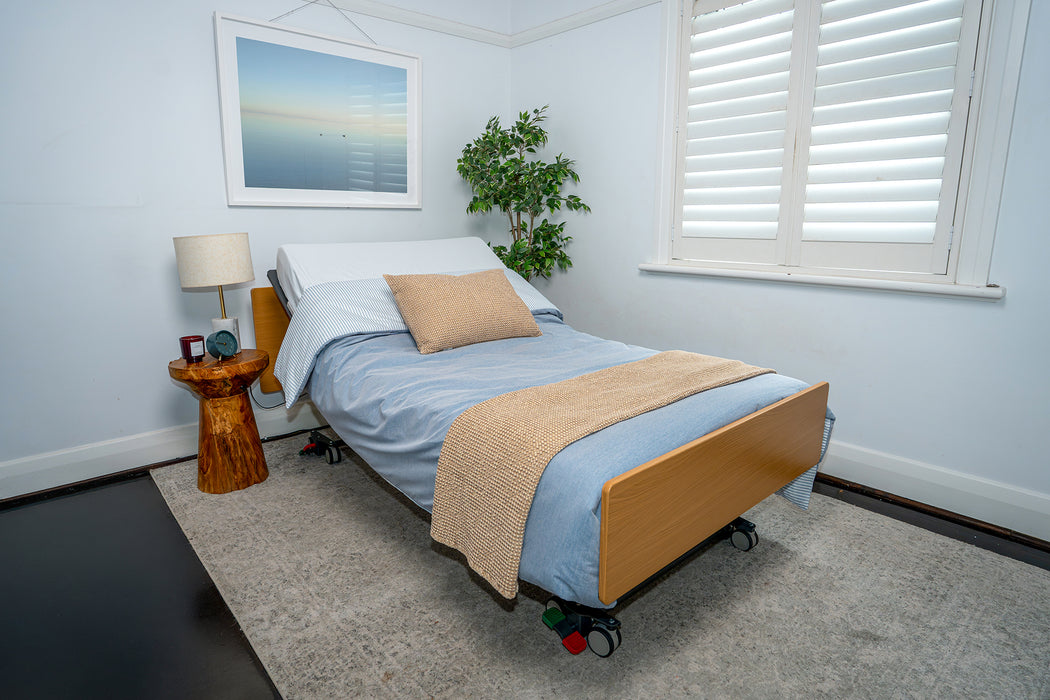

Newport Floorline Bed

Newport Floorline Bed

The Newport Floorline Bed from Novis Healthcare is designed to enhance safety and comfort while minimising the risk of falls and the need for restraints. This advanced, column-less electric bed can be lowered to an ultra-low height of just 110 mm from the floor, reducing the risk of injury in case of falls. It also features a high working height of 740 mm, improving ergonomics for carers during patient care.


With a wide range of safety features and multiple positioning capabilities, the Newport Floorline Bed ensures optimal comfort and support for patients. Available in both Single and King Single sizes, it offers versatility and reliability for a variety of care settings.

Request a quote
Documentation
We currently don't have any documentation for this product - please get in touch if you have questions

Single:

• Overall Dimensions Length x Width: 2115 x 920 mm (not extended)
• Height of the Base: Adjustable from 110 – 740 mm
• Recommended Mattress Dimensions Length x Width: 1980-2000 x 880-900 mm

King Single:

• Overall Dimensions Length x Width: 2115 x 1090 mm (not extended)
• Height of the Base: Adjustable from 110 – 740 mm
• Recommended Mattress Dimensions Length x Width: 1980-2000 x 1050-1070 mm

Technical Specifications:

• Back Rest Angle Adjustment: 0° to 70°
• Knee Bend Angle Adjustment: 0° to 35°
• Trendelenberg Tilt Adjustment (Head and Foot Down): 0° to 15°
• Base Extension: 100-200 mm (max)

Safety:

• Maximum Safe Working Load: 220 kg (single) 250 kg (king single)

Warranty:

• Frame: 10 years
• Electrical Components: 5 years

Compliance:

• ARTG Number: 278782
• Australian Standards: IEC 60601-2-52

• Electrically Actuated: Electrically actuated floor line care bed with multiple positioning movements, enhancing convenience and patient comfort.

• Auto-Regression Backrest: Adjusts as the bed profiles, reducing shear and friction forces to prevent skin damage and enhance patient comfort.

• Linked Braking: Equipped with linked braking, providing caregivers with efficient control and ensuring patient safety.

• Ultra-Low Height: Minimal 110mm height from the floor. Minimises the risk of falls and increases user safety in the event of a fall.

• Backup Battery: Optional backup battery to ensure continuous operation in case of power interruptions.

• Under-Bed Lighting: Under-bed lighting included as standard, enhancing visibility for caregivers during nighttime tasks.

• Attendant Control Panel: Optional convenient control for caregivers to adjust bed settings.

• High-Low Height Adjustment: Handset-operated electric high-low height adjustment enhances ease of use for both patients and caregivers.

• Versatile Positioning: Offers additional positional adjustments, including chair function and egress, to accommodate a variety of patient needs.

• Base Extension: Built-in base extension increases the bed platform's length by 100-200 mm, providing added comfort for patients.
